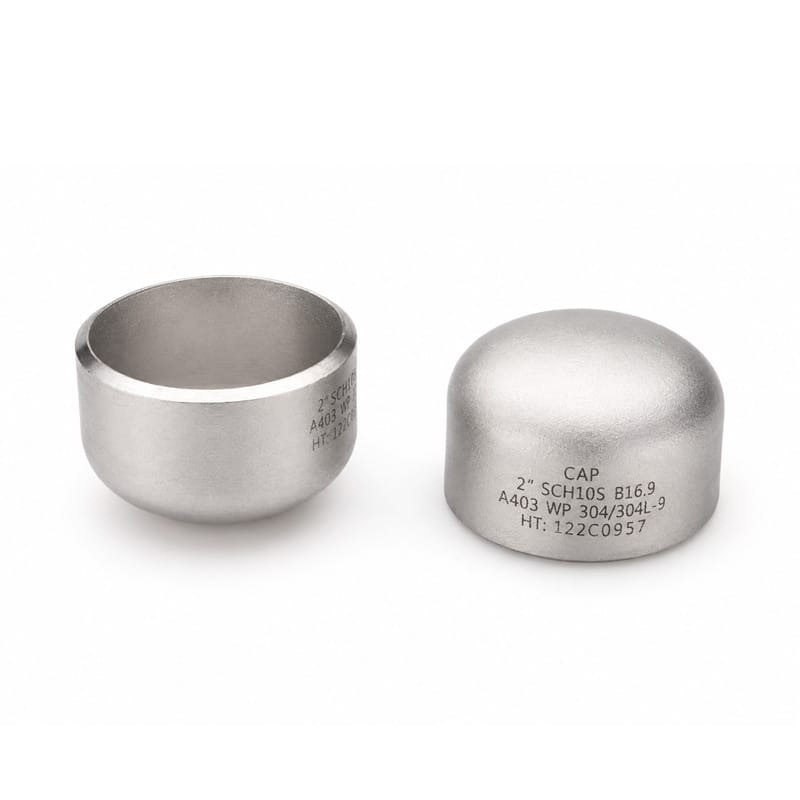

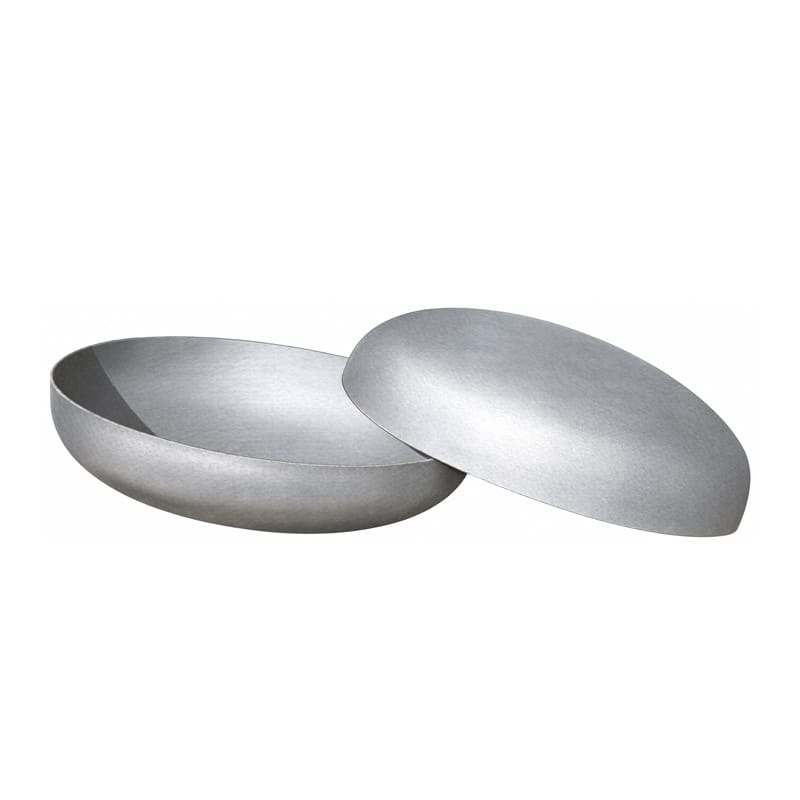

Stainless steel butt-weld pipe caps are used to seal the ends of pipelines conveying corrosive, clean, or high-purity media. When joined to the pipe via a full-penetration weld, they form a permanent pressure boundary, thereby reducing potential leak points associated with threaded or flanged connections.
Wyprodukowane przy użyciu zaawansowanego sprzętu CNC i sprawdzonych procesów, nasze kołnierze, zagięcia rur i złączki zapewniają dokładne wymiary, stabilną wydajność uszczelniania i niezawodną instalację w wymagających zastosowaniach przemysłowych.
Normy: GB/T 12459-2025, GB/T 13401-2025; ASME B16.9-2024 ma zastosowanie do projektów eksportowych.
Structure/Dimensions: Stainless steel butt-weld pipe cap; specify nominal size, wall thickness, total depth, and end bevel; ASME B16.9 covers NPS 1/2–48 (DN15–1200), with wall thickness specified according to the connected piping Schedule (Sch) or design thickness.
Connection: Butt-weld; bevel type and root face dimensions are determined based on the welding procedure and project specifications.
Material: Stainless steel such as ASTM A403 WP304/304L, WP316/316L, etc.; material grade, seamless/welded type, heat treatment, and non-destructive testing (NDT) requirements must be clearly specified at the time of inquiry.
Pressure Rating: Butt-weld fittings generally do not have a standalone “Class” rating; pressure-bearing capacity is determined by material, wall thickness, temperature, and applicable piping design codes.
Ordering/Acceptance: Confirm NPS/DN, nominal size, wall thickness/Schedule, structural dimensions, seamless/welded type, material grade, heat treatment, bevel details, and NDT requirements; pressure-bearing capacity is verified based on material, wall thickness, temperature, and piping design codes.
