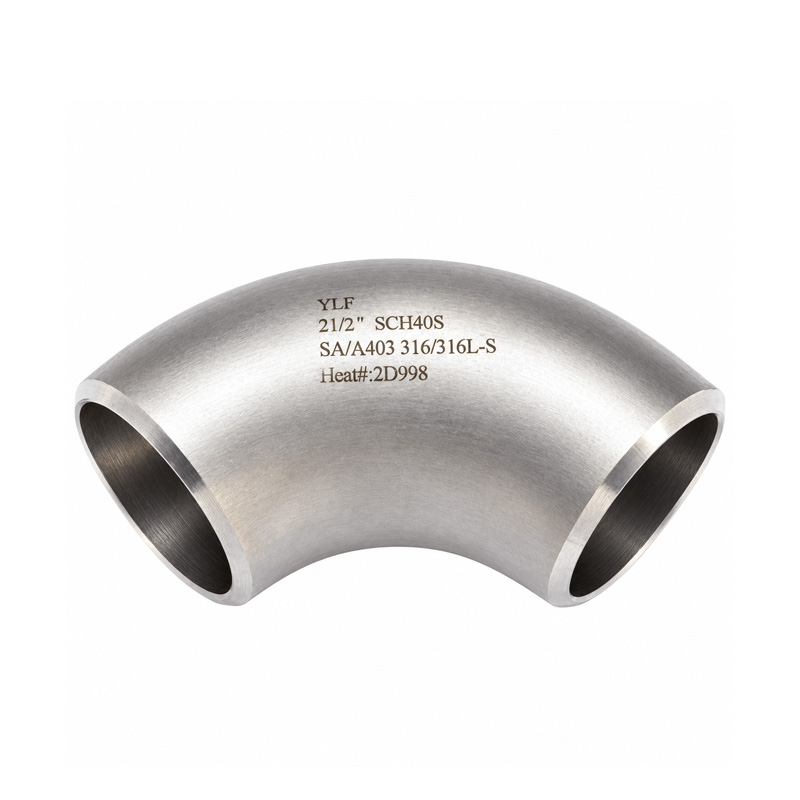

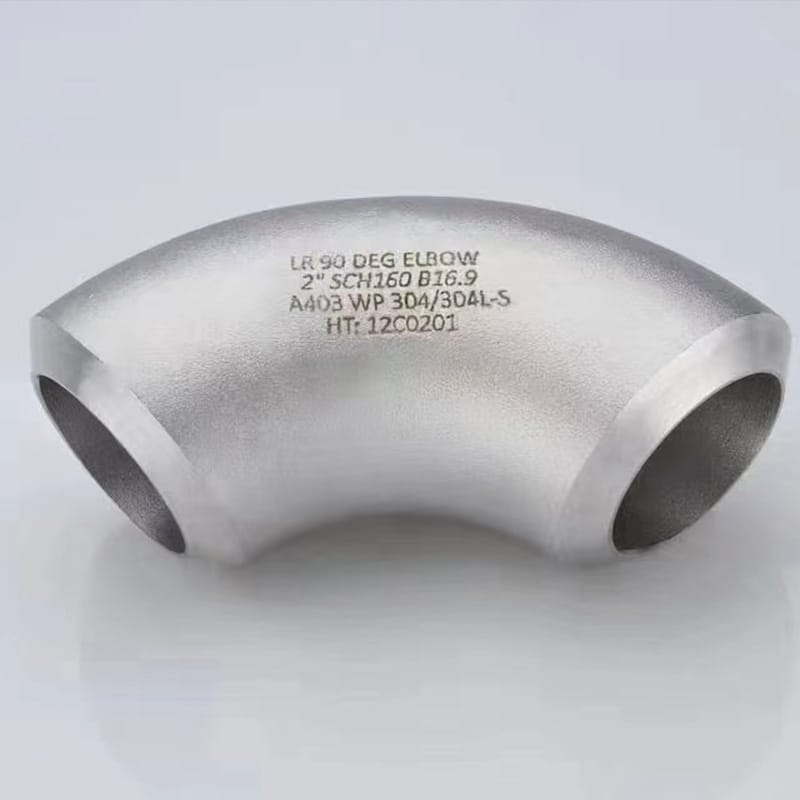

Stainless steel 90° butt-weld elbows are used for right-angle turns in pipelines conveying corrosive, high-purity, or high-temperature media. Long-radius or short-radius options are available, with material grades and surface finishes determined by the specific requirements of the medium.
Manufactured with advanced CNC equipment and proven processes, our flanges, pipe bends, and fittings deliver accurate dimensions, stable sealing performance, and dependable installation across demanding industrial applications.
Standards: GB/T 12459-2025, GB/T 13401-2025; ASME B16.9-2024 applies to export projects.
Configuration/Dimensions: Stainless steel 90° long-radius or short-radius elbows; specify nominal size, wall thickness, and center-to-end dimensions; ASME B16.9 covers NPS 1/2–48 (DN15–1200), with wall thickness specified according to the connected piping Schedule (Sch) or design thickness.
Connection: Butt-weld; bevel configuration and root face dimensions to be confirmed based on welding procedures and project specifications.
Material: Stainless steel such as ASTM A403 WP304/304L, WP316/316L, etc.; material grade, seamless/welded type, heat treatment, and NDT requirements must be clearly specified at the time of inquiry.
Pressure Rating: Butt-weld fittings generally do not carry a specific “Class” rating; pressure-bearing capacity is determined by material, wall thickness, temperature, and applicable piping design codes.
Ordering/Acceptance: Confirm NPS/DN, port sizes, wall thickness/Schedule, dimensional configuration, seamless/welded type, material grade, heat treatment, bevel details, and NDT requirements; pressure-bearing capacity of butt-weld fittings is verified based on material, wall thickness, temperature, and piping design codes.
