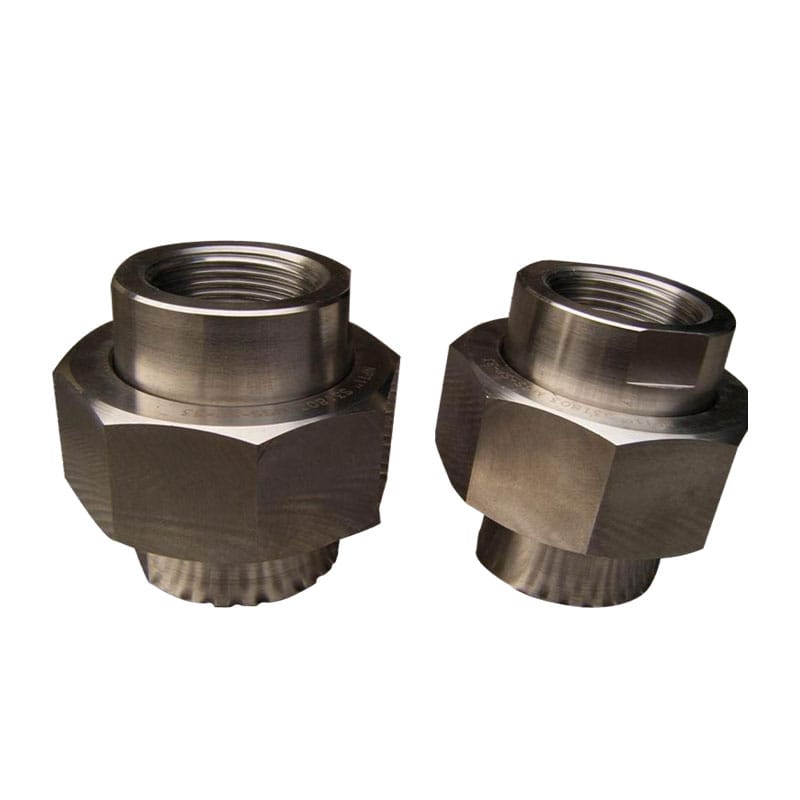

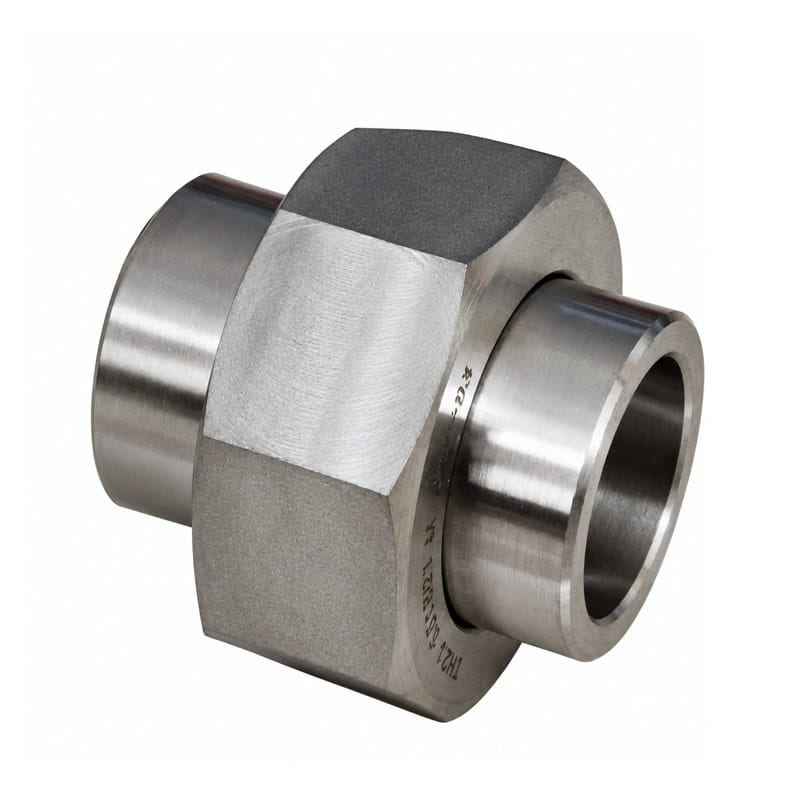

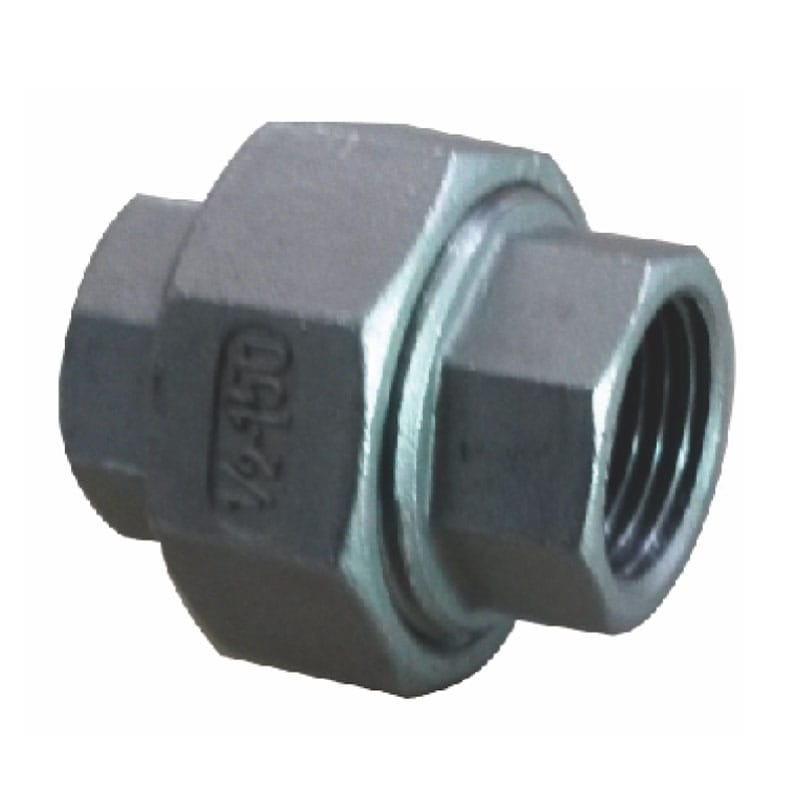

A detachable connector assembly consisting of two end pieces, a nut, and mating seating surfaces; it allows for assembly and disassembly without rotating the piping at either end. It is suitable for small-diameter piping systems that require maintenance, cleaning, or equipment replacement.
Manufactured with advanced CNC equipment and proven processes, our flanges, pipe bends, and fittings deliver accurate dimensions, stable sealing performance, and dependable installation across demanding industrial applications.
Standards: GB/T 32294-2015; export orders may comply with MSS SP-83-2025.
End Connections: Threaded or socket weld; for threaded versions, specify NPT or other thread standards.
Pressure Rating: Class 3000 or 6000 (per MSS SP-83).
Materials: Carbon steel, alloy steel, stainless steel, or nickel alloy forgings.
Ordering Information: Nominal size, pressure rating, thread standard, seat face type, material, and sealing requirements.
Ordering/Acceptance: Confirm nominal size, Class, end connections, thread standard, seat face type, and material; inspect nut engagement, seat face quality, markings, and pressure integrity requirements.
